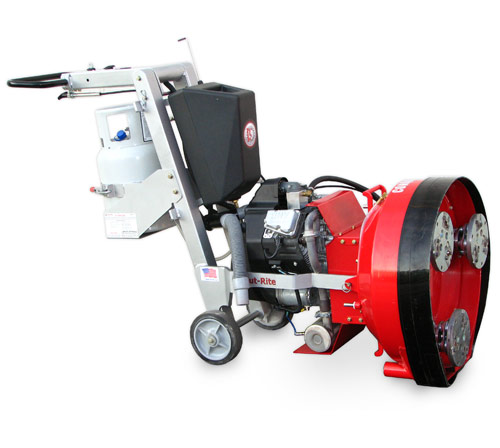

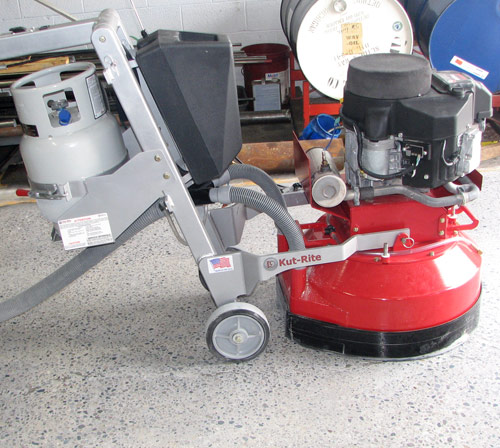

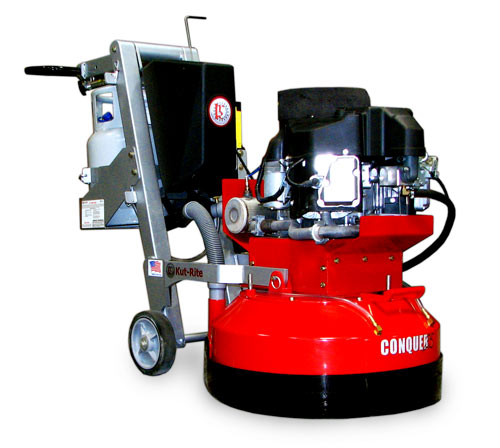

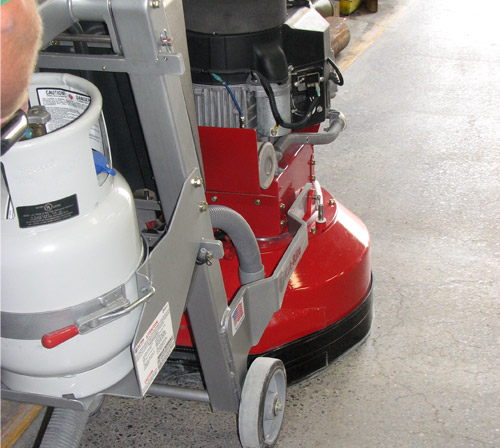

Introducing the Conquer25 LP!
Kut-Rite has partnered with Onyx Environmental Solutions to produce the most versatile propane operated grinder/polisher available in the industry. The Onyx technology exceeds OSHA standards for indoor operation ensuring the safety of the operator and the workplace environment. The Onyx propane system reduces carbon monoxide emissions by up to 98% over conventional propane powered systems by continuously adjusting the fuel flow and emissions automatically.

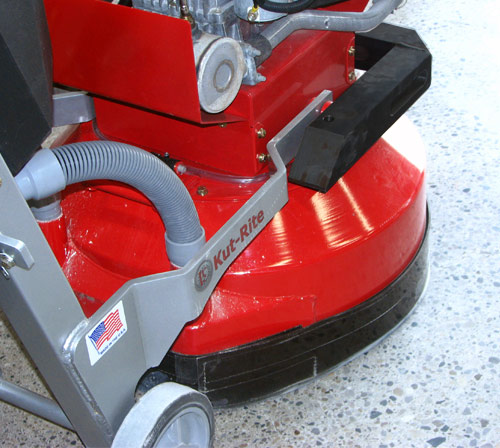

The Conquer25 LP incorporates all of the Conquer series ergonomic designs that have become “fan favorites” for Conquer users. For instance; the Tilt Back Bowl that is incorporated into each and every Conquer series machine is also included in the Conquer25 LP! Thus, allowing the operator to safely and easily perform service and required tool (abrasive) changes.
The adjustable throttle allows the operator to dial in the rpm to match the abrasive/substrate specific requirement. Just twist and pull and you can set the rpm to exactly the speed that is required.
RPM is an important part of any grind/polish project and the Conquer25 LP is equipped with a digital tachometer that provides the exact engine rpm. There is a conversion chart on the handle that converts the engine speed to tools speed for precision grinding/polishing with specific tools.
The Conquer25 LP incorporates an electronic clutch for precision engagement of torque to the grinding/polishing tools. This feature allows the system to start with zero torque and then engage or disengage with a flip of a switch.
Belt Drive System
The Conquer25 is equipped with a unique drive system for maximum torque. The Serpentine belt provides up to 70% contact with the drive pulley and more than 50% contact with the spindle pulleys. What this translates to for the end user is NON-STOP Power and Torque!! The belt is easily removed in minutes not hours.
Quick Disconnect Tooling
Kut-Rite's new Quick Disconnect tool mounting design is redefining how concrete diamond tools are mounted. The QD system incorporates two locating pins, for precise tool positioning and the use of powerful neodymium rare earth "super magnets" to hold the tools in place while on the floor. The result of this combination produces a tool system that allows quick and precise placing of tools for smooth running, holding power that virtually eliminates tool kick out during operation and extremely fast removal/insertion time.
Featured Accessories
| REMOVE | GRIND | POLISH |
|---|---|---|
 |
 |
 |
| Model | HP | Power Source | Production Path | Weight | Tool Speed | Grinding Head Pressure |
|---|---|---|---|---|---|---|
| Conquer25 LP | 603cc (16HP) | Propane Powered | 25" | 500lbs | 200-1500rpm | 380lbs |
